Whether you are tracking live market metrics in Summerlin, managing massive database layouts in Henderson, or compiling complex programming scripts in the Downtown Las Vegas Innovation Corridor, your daily production capacity is tied directly to your visual workspace real estate. Minimizing window tabs, constantly minimizing folders, and crowding multiple applications onto a single small monitor creates a persistent bottleneck on your daily business momentum.
Historically, outfitting a workspace with a dense multi-display array required purchasing massive desktop towers or utilizing expensive third-party adapters that caused noticeable cursor lag and display distortion. The arrival of the redesigned Apple Mac Mini M4 changes the entire workspace paradigm, allowing Southern Nevada business owners and digital professionals to command three independent high-resolution monitors natively from a desktop chassis that measures just 5 inches by 5 inches.
By deploying a certified refurbished Mac Mini M4 from Best Deal Vegas, local operations can secure elite multi-screen computing power while keeping upfront equipment capital highly optimized. To ensure a stable, flicker-free connection across your entire monitor array, you simply need to align your cable layout with Apple's native hardware bandwidth parameters.
1. The Hardware Bandwidth Layout: Understanding the Ports

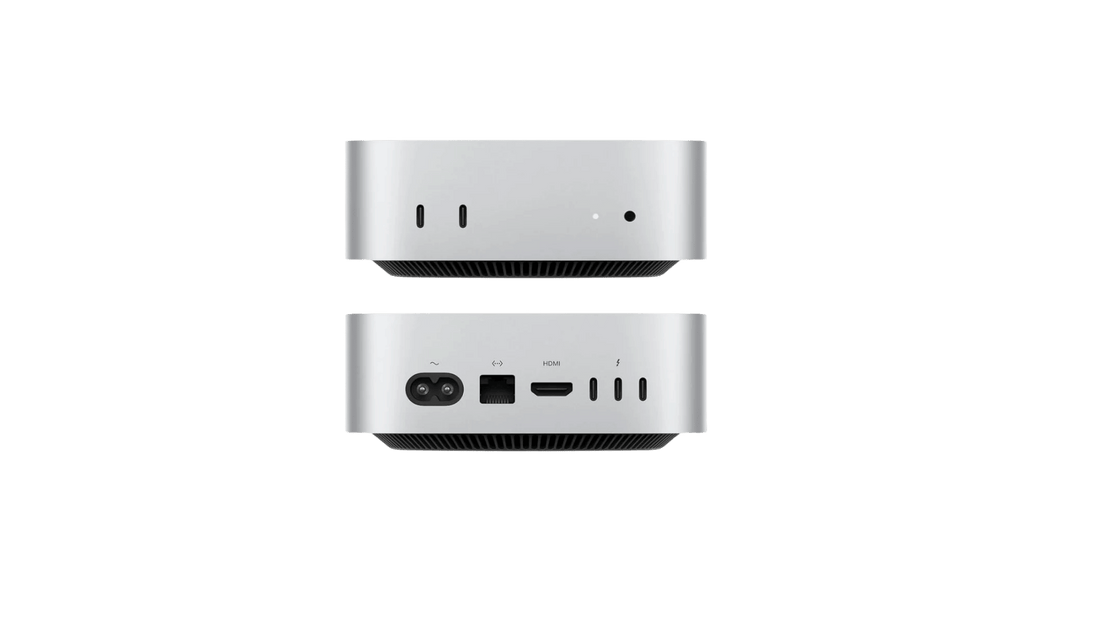

The back of the M4 Mac Mini features three high-speed Thunderbolt 4 ports and one native HDMI interface. To successfully distribute uncompressed video data across three separate screens simultaneously, you can choose between two main structural cabling approaches:
-
Cabling Configuration A: Connect two external displays up to 6K resolution at 60Hz via separate rear Thunderbolt 4 ports, and route the third display up to 5K resolution at 60Hz using the third available Thunderbolt 4 port.
-
Cabling Configuration B: Connect two external displays up to 6K resolution at 60Hz via separate rear Thunderbolt 4 ports, and route your third display up to 4K resolution at 60Hz directly through the built-in native HDMI port.
Crucial Desktop Setup Rule: The two convenient front-facing USB-C interfaces on the Mac Mini M4 are standard USB 3 data ports. They do not support video output routing. All three of your monitor cables must connect directly to the high-bandwidth interfaces on the rear panel.
2. Avoid Splitting Hubs: The Power of Direct Cables
The most frequent point of failure when setting up a triple-monitor display matrix is relying on cheap, unpowered USB-C hubs to split a single port into multiple video outputs. The base M4 graphics pipeline requires direct, independent channel routing to separate physical ports on the machine.
-
For DisplayPort-equipped monitors, utilize direct, high-quality USB-C to DisplayPort 1.4 cables.
-
For HDMI-equipped monitors, run a certified high-speed HDMI 2.1 cable or a direct USB-C to HDMI adapter cable directly into an independent rear port.
| Multi-Display Performance Metric | Older Legacy Micro Desktop Units | Certified Refurbished Apple Mac Mini M4 |
| Native External Screen Support | Typically capped at 1 or 2 external screens | Drives up to 3 high-definition monitors natively |
| Video Compression Software | Required for third screen, causing cursor lag | Uncompressed hardware level rendering across all screens |
| Chassis Desk Footprint | Large desktop cases or bulky office towers | Ultra compact 5 inch by 5 inch aluminum space saving frame |
| Rear Expansion Interface | Standard legacy USB ports with low video band | Three independent high speed Thunderbolt 4 ports + HDMI |
| Graphics Pipeline Architecture | Shared basic integrated graphics prone to stutter | Powerful 10-core GPU with hardware ray tracing acceleration |
3. Setting Up Your Workspace Layout in macOS
Once your hardware cables are physically locked into the rear of the Mac Mini, you need to align the virtual mouse tracking path with the physical placement of the screens on your office desk.
-
Navigate to the System Settings menu on your Mac and select the Displays preference pane.
-
Click on the Arrange button to open the virtual workspace matrix.
-
Click and drag the screen rectangles up, down, or side-by-side to mirror exactly how your monitors are positioned on your desk layout. This ensures your mouse cursor tracks fluidly across all three displays without hitting artificial screen borders.
Upgrade Your Workplace Performance at Best Deal Vegas
Re-engineering your local commercial office floor, financial tracking desk, or startup workstation with maximum multi-display performance shouldn't require exhausting your quarterly hardware budget. Best Deal Vegas has spent more than ten years helping local business owners, remote executives, and expanding teams across the Las Vegas Valley source elite commercial technology for less. We specialize in providing pristine, thoroughly certified open-box assets, high-spec refurbished Apple hardware, and world-class commercial ergonomic office furniture at an exceptional value.
Avoid long online distribution queues and high retail store markups. Visit our local storefront showroom location on Eastern Ave, right across from Sunset Park, to consult with our enterprise procurement specialists and view our massive inventory of refurbished Mac Minis, MacBook Pros, and top-tier adjustable task seating in person. Find the exact hardware fit to optimize your team's workflow productivity, and discover how our budget-conscious procurement solutions can elevate your Southern Nevada business operations today.
